100kn Touch Screen 10 Ton Tensile Compression Strength Universal Testing Machine

Product Categories
DONGGUAN YUYANG INSTRUMENT CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

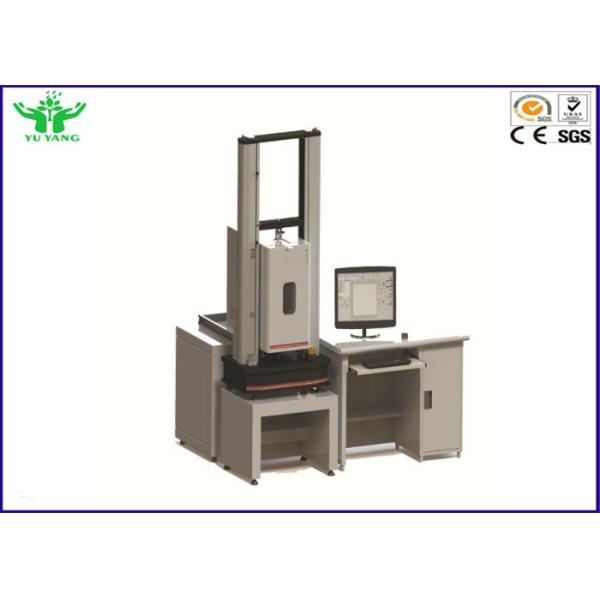

100kn Touch Screen 10 Ton Tensile Compression Strength Universal Testing Machine

Brand Name : YUYANG

Model Number : YY1311

Certification : QB/T 2918-2007

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : Western Union, T/T, L/C,Paypal

Supply Ability : 3 pcs /week

Packaging Details : plywood case

Application : Tensile, compression

Max test force : 100KN

Speed range : 0.01-300mm/min

Compression testing machine : 600mm

Customized support : OEM, ODM, OBM

Driver type : Motor load

Test Range : 1%-100%FS

Displacement resolution : 0.01mm

Safety : Electronic-limit protection

Power : 220V 50Hz

Contact Now

100kn Touch Screen 10ton Universal Testing Machine Tensile Compression Strength Testing Machine

Description:

electronic universal testing machine is a versatile piece of equipment that can be used to test the tensile, compression, and flexural strength of materials. It is a valuable tool for engineers, scientists, and quality control professionals. The machine is easy to use and comes with a variety of features that make it ideal for a variety of applications.

Specification:

Model

YY1311

Capacity (optional)

100, 200, 500 N; 1, 2, 5 kN,50kn,100kn,300kn,500kn

Unit (Switchable)

kgf, gf, Ton, lbf, N, kN or by user`s definition

Load Resolution

1/50,000 (U25)

Load Accuracy

±0.5%

Stroke (exclude the grips)

1000 mm

Method of Speed Input

knob

Test Speed

5~500 mm/min adjustable

Stroke Resolution

stroke:0.00125 mm / extensometer:0.025 mm

Sample Rate

16 times/sec

Indicator

print able, display elongation vatue, test values, max. value & break values.

Motor

AC servo motor

Dimension (W×D×H)

55 × 35× 177 cm

Weight (approx.)

115 kg (excluding control cabinet and grips)

Power

1∮, 220V, 5A or specified by user 50HZ/60HZ

Accessories such as different grips, elongation measuring devices... Etc. are

Equipped according to the requirements stipulated in the contract; Our sales

The representative will also give our clients appropriate advice in advance.

100kn Touch Screen 10 Ton Tensile Compression Strength Universal Testing Machine

100kn Touch Screen 10 Ton Tensile Compression Strength Universal Testing Machine100kn Touch Screen 10 Ton Tensile Compression Strength Universal Testing Machine


Product Tags:

100kn universal tensile testing machine



Tensile Compression Strength Universal Testing Machine



Touch Screen utm 100 kn machine

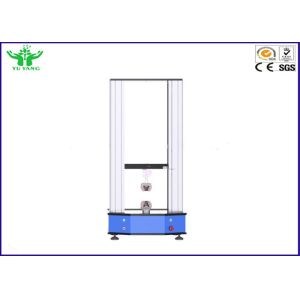

China 100kn Touch Screen 10 Ton Tensile Compression Strength Universal Testing Machine wholesale
